System Description

The screen door system is ahigh-tech product combining advanced knowledge of architecture, mechanics,electronics , materials and information technology, Which is mainly used in therapid transit area, such as subway, city rail, high-speed railway. The screendoor system is installed at the edge of platform to separate the rail area andthe waiting area, which effectively reduces power consumption of theenvironmental control equipments in the station, and prevents ventilation lossof the air-conditioning system, ensuring a comfortable waiting environment forthe passengers. The screen door is also a station security system for safedriving and waiting.
Dinghan screen doorsystem is independently developed by Dinghan Technology, with 3 patents ofinvention, 2 patents of utility model, 6 patents of appearance and 1 softwarecopyright.

System Components

Thescreen door system is composed of mechanical structure and electrical controlsystem.

Mechanical structure includes:door body, load-bearing structure, top container, ground sill, drivingmechanism, gate components, gate lock, manual unlocking device etc.

Electrical control system includes: PSC master, PSL local controlpanel, DCU gate unit, driving motor and screen door power-supply etc.

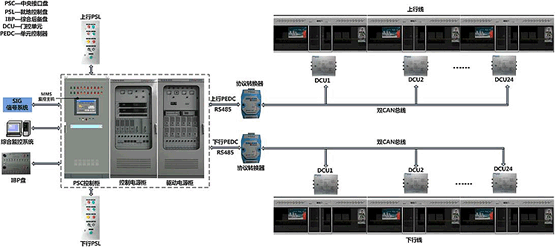

PSC-Central interfacepanel

PSL-Local controlpanel

IBP-integratedback-up panel

PEDC-unit controller

Up PSL

MMS central monitor

SIG signaling system

Comprehensivemonitoring system

IBP panel

PSC control cabinet

Control power cabinet

Driving power-supplycabinet

Down PSL

Up PEDC

Down PEDC

Protocol Converter

Up line

Dual CAN bus

Down line

Systemfeatures

FineStructural Design

Inventionpatent of gate lock and a number of patents of utility model and appearance;

Finedesign of the control mechanism ensures easy and comfortable operations;unlocking handle not only gives excellent hand feeling to operators, but alsomeets the requirements of human instinctive actions in emergencies;

Theoperating and maintenance positions are centralized as much as possible, toreduce difficulty of operation during maintenances for easy overhaul;

Thematerial selection in anti-pinch design and the slope angle of anti-standingpedal take full considerations of passenger feeling to make all reasonable;

Aluminumand stainless steel can be used according to different requirements.

ReliableControl System

Completedesign team; fully independent R&D; advanced control, communication,mechanical and electronics technologies based; achieving international advancedlevel;

Maturepower-supply products;

PEDCintegrated with Siemens PLC system;

Allperformance tests are verified by third parties;

High-endproducts from international top-brands are employed for all key components,such as Schneider, ABB, Omron etc.;

1-control& 1-drive mode is used for the screen door system DCU;

ExcellentFunctionality

Touchscreen technology is employed for main monitoring screen for easy operation;

Monitoringsystem software is based on the operation management design;

Real-timerecords changing, maintenance reminding and individulized functions areenabled;

Centralizedsoftware download function is enabled.
